AWS Cloud Deployment

Common components

These components are required for an AWS deployment.

•Amazon Elastic Kubernetes Service (EKS) for container orchestration

•Amazon Elastic Compute Cloud (EC2) for virtual computing resources

•Amazon Simple Storage Service (S3) for object storage

•Amazon Relational Database Service (RDS) for managed relational databases

•Amazon Elastic File System (EFS) for scalable file storage

•AWS Lambda for serverless computing

•AWS CloudFormation for infrastructure as code

•AWS CloudWatch for monitoring and logging

•AWS Identity and Access Management (IAM) for access control

AWS Security

•Youtap uses AWS Security Hub for threat detection and compliance checks.

•All AWS Elastic Block Store volumes are encrypted using industry-standard AES-256 encryption algorithm.

•Youtap uses AWS Identity and Access Management for authentication and identity management.

•All network traffic is encrypted using SSL/TLS.

•AWS Key Management Service is used to securely manage cryptographic keys and secrets used by the application.

•AWS WAF (Web Application Firewall) is used to protect the application against common web attacks.

•AWS Shield is used to protect the application against DDoS attacks.

•AWS Config is used to monitor and audit the application's compliance with security policies and industry standards.

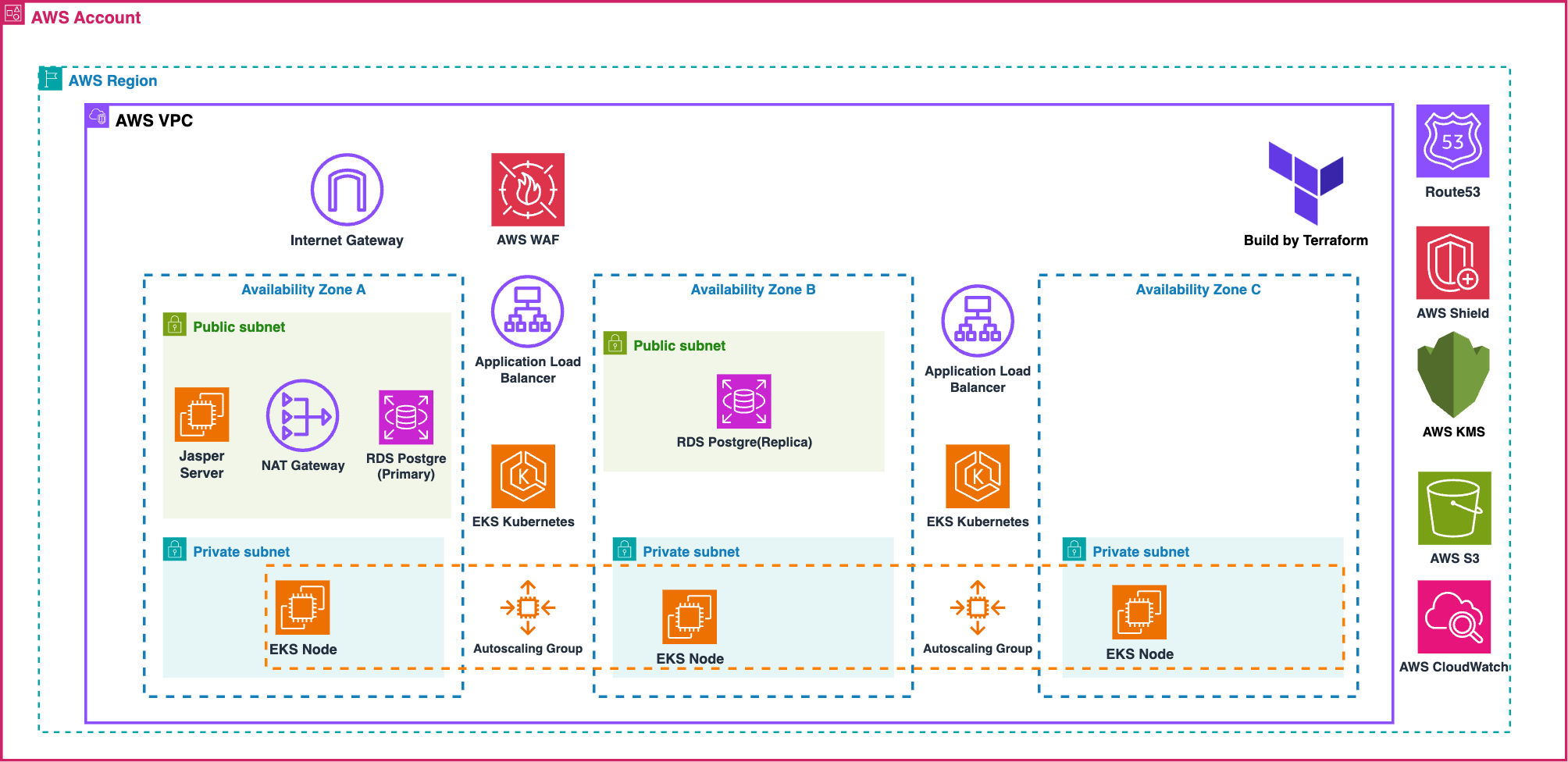

AWS Infrastructure

Traffic Flow on AWS

Medium Size Platform Cost Estimation

AWS Production Bill of Materials - Total Approx Bill per month USD 3000
